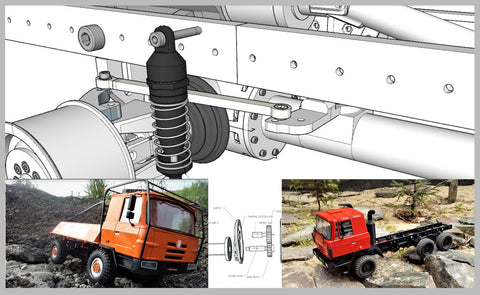

RC model Tatra truck

Manual for T 6×6 and T4x4

A few words about the building …..
● read the whole manual before construction
● I leave the material to the customer’s choice.
● I’ve found that if I recommend PETG, for example, not everyone can print it out nicely. ABS does not hold on another bed.
● The model is designed so that if you choose your favorite material it will print without any problems. I have already printed them
from PETG, ABS, PLA, CPE.
● Choose a material best for your printer and has beautiful layers.
● I recommend a layer of 0.2 mm, just 20% fill. For bearings use and caradans use min 75% infill.
● For tires 5%
● But if your printers combine layers, take advantage of it. Alternatively, if you want a very detailed surface, print on a 0.1 mm
layer.

You will need:

● bearings 10x15x4 – 28 pcs
● screws M3 x 10 mm – 150 pcs
● screws M3 x 14 mm – 40pcs
● screws M3 x 16 mm – 20pcs
● screws M2 x 10 mm – 60pcs
● locking screws M3 x 6 mm (coils) – 50pcs
● nuts M2 – 60 pc
● nuts M3 – 50pcs
● screws M6 x 55 mm – 2pcs
● screws M6 x 100 mm – 4 pcs
● screws M6 x 30 mm – 10pcs
● nuts M6 – 20 pcs (necessary glue – or you can try lock nuts)
● threaded rod dia 3mm and 190-195mm long 2x
● Screws M4 x 40mm – 2x



  • Servo JX servo 6221MG – 1x (or similar, power 8kg)
  • Engine – 35 T (coil) :
  • regulator -180 A max , 11,V
  • Baterry LiPo 2cell 7,4V – or more

manual

Manuals

Leave a Comment

Your email address will not be published. Required fields are marked *

Previous reading
Fennec (The Mandalorian) – 3D Printed cosplay tutorial
Next reading

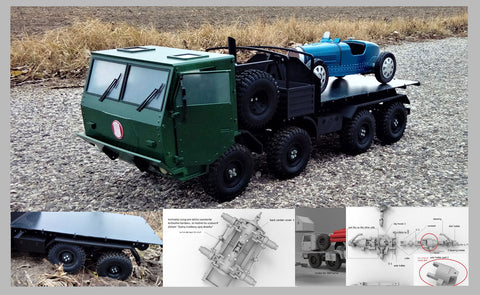

RC model Tatra truck 8×8
