Ekko Mace - Arcane

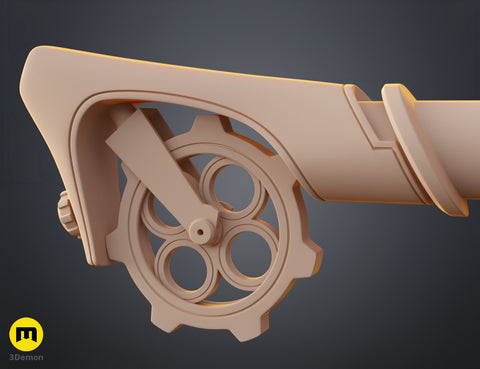

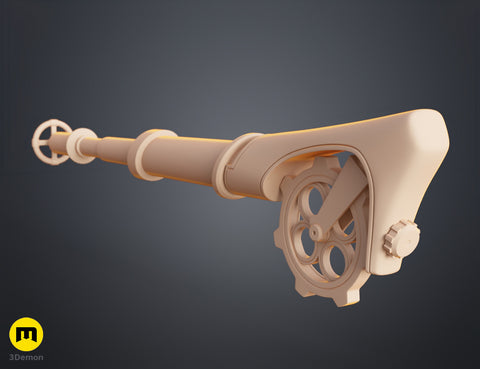

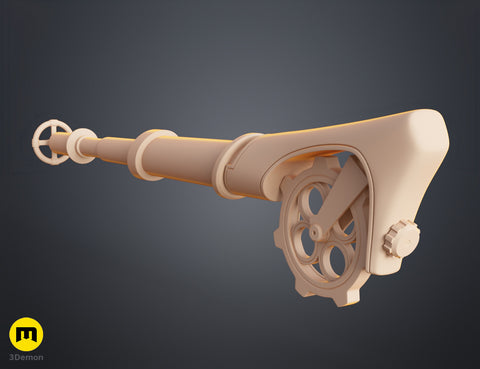

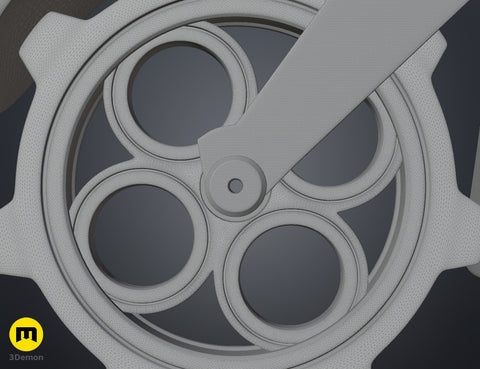

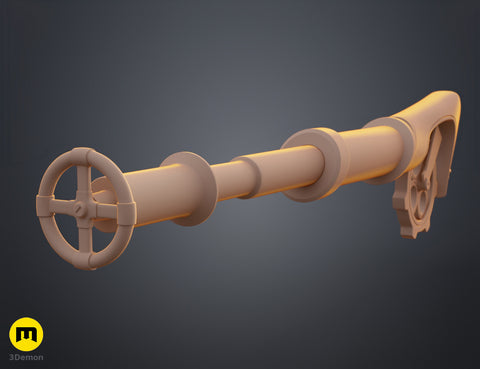

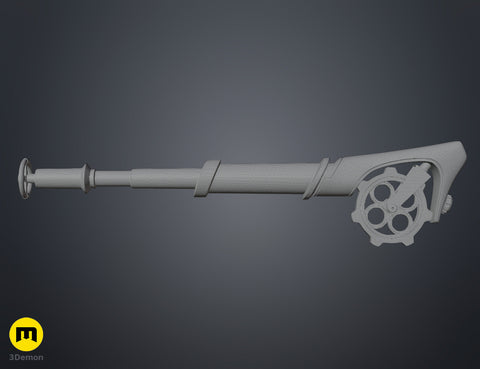

This is a digital 3D printable model of Ekko’s Mace from Arcane. The prop is about 110 cm (43.3 inches) long and includes a 1 cm (0.4 inch) slot for a wooden rod. The wheel holder prints joined but flexes apart to fit the mechanical wheel, allowing it to spin freely.

📦 Included Files

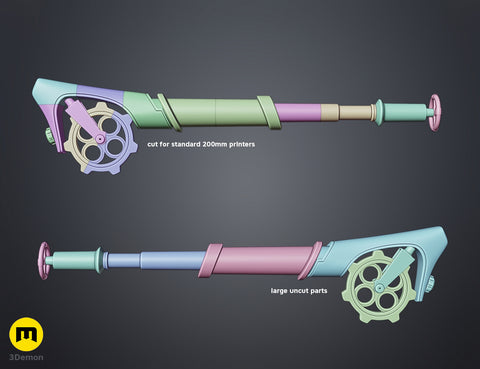

• STL (cut for 200mm printer beds)

• STL (separate for larger printers)

• Assembled OBJ file (for easy scaling)

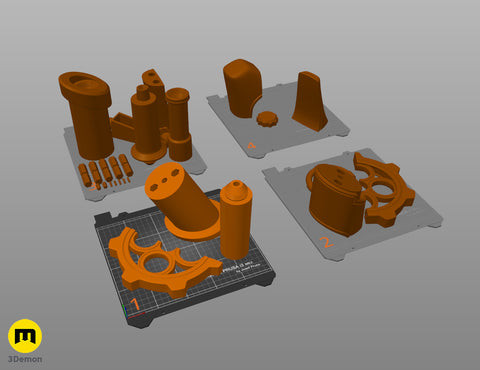

All cut parts are placed on the print bed just as we would print them, saving you time.

📏 3D Model Dimensions

• Width: 105 mm

•  Length: 1100 mm (43.3 inches)

• Height: 262 mm

Feel free to scale the model to fit your needs. Learn more about sizing and scaling for cosplay here.

🖨️ Printer Settings

• Layer height: 0.15 mm

• Infill: 10% gyroid pattern

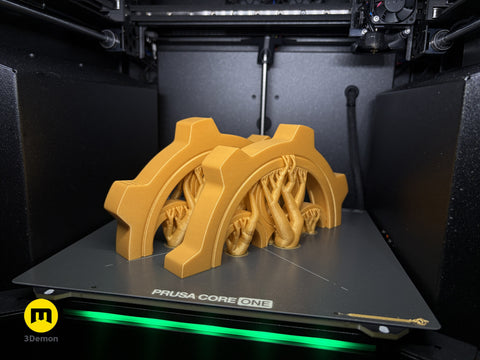

• Supports: 30° organic

• For taller parts, use a brim for better bed adhesion

Settings may vary depending on your printer, so treat these as a starting point.

🛠️ Assembly
Glue the parts together using contact cement or super glue. Hex pegs are included for easy alignment. For extra strength, you can insert and glue in a 1 cm (0.4 inch) diameter wooden rod.

No 3D printer? No problem! Search for your local 3D printing services.
