Description

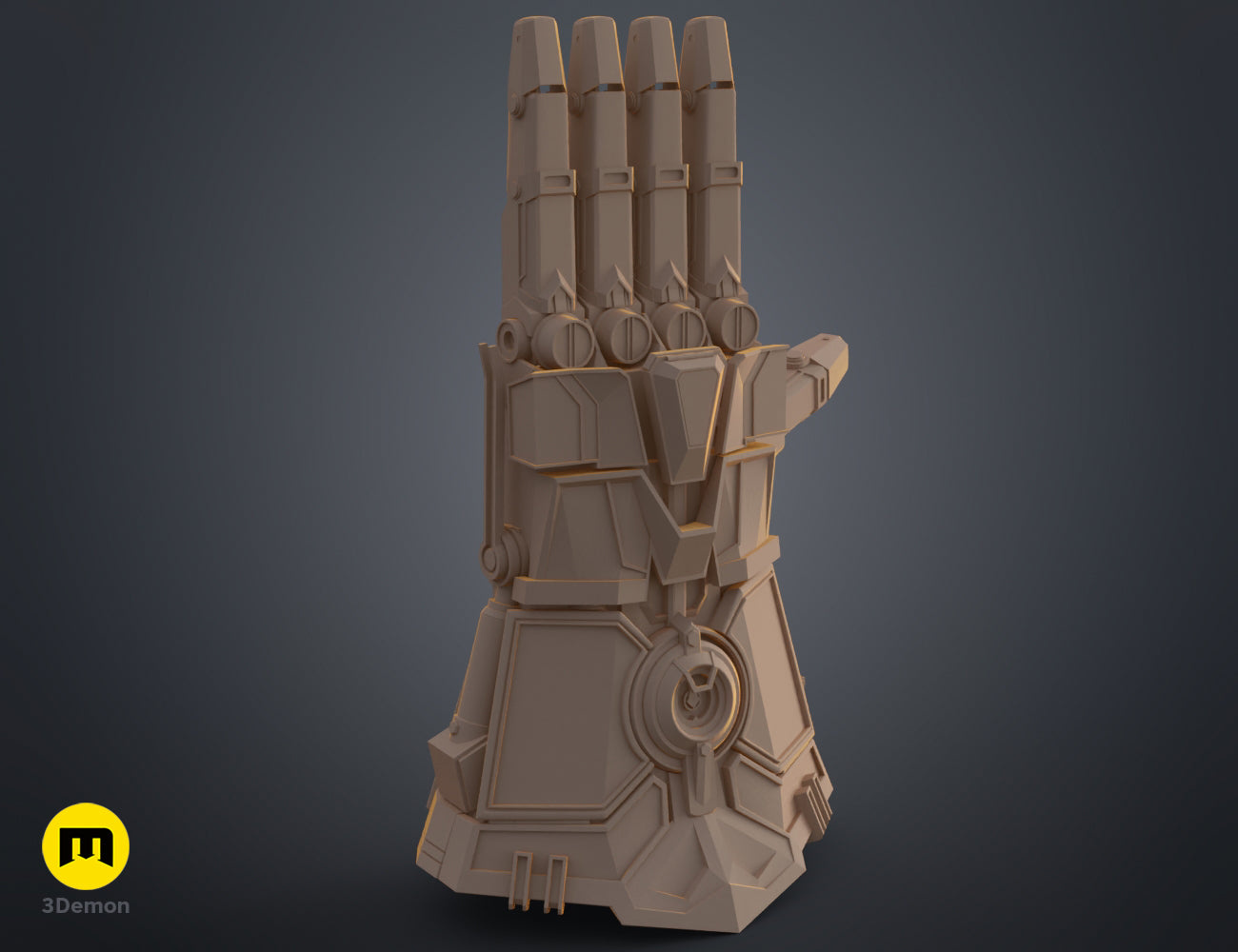

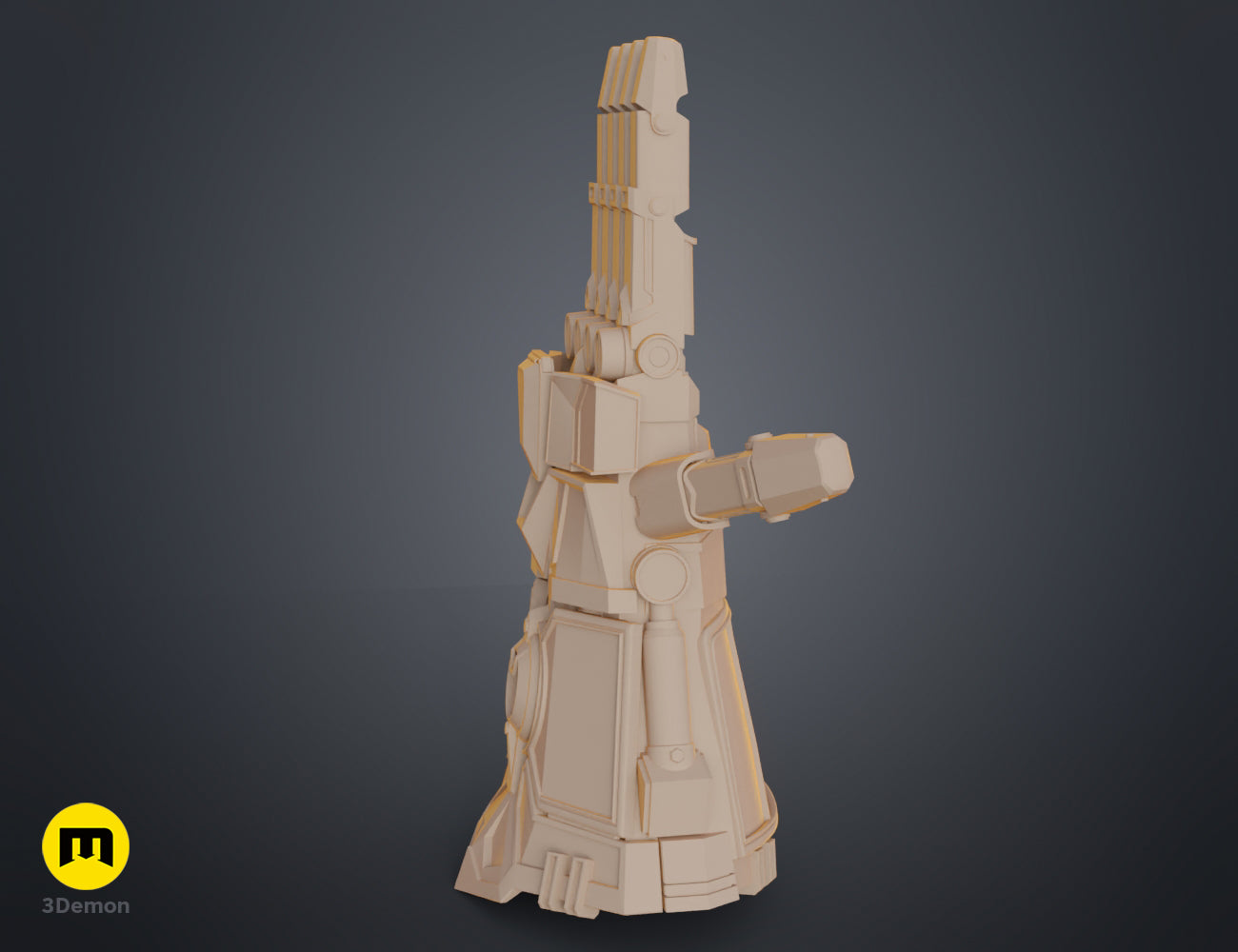

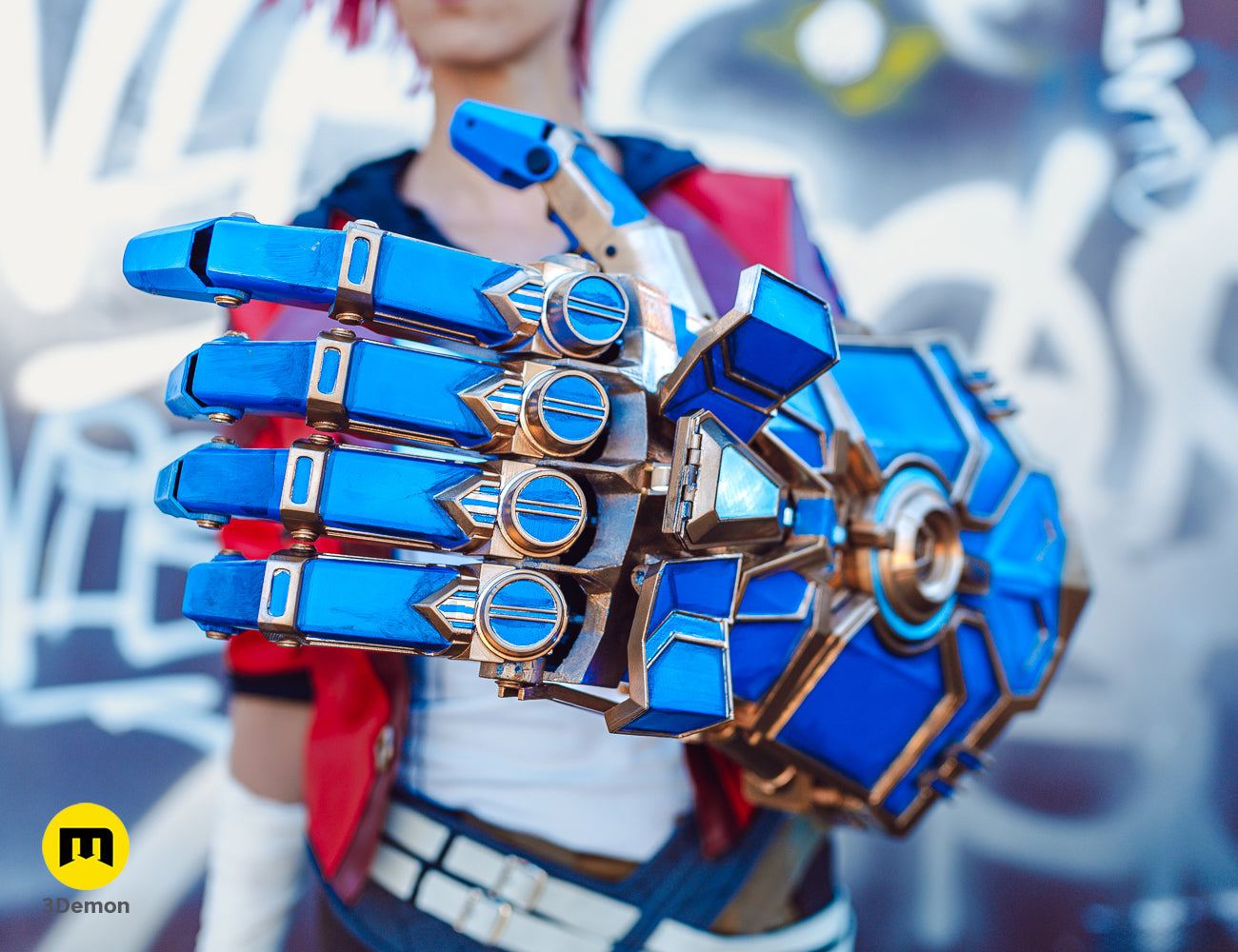

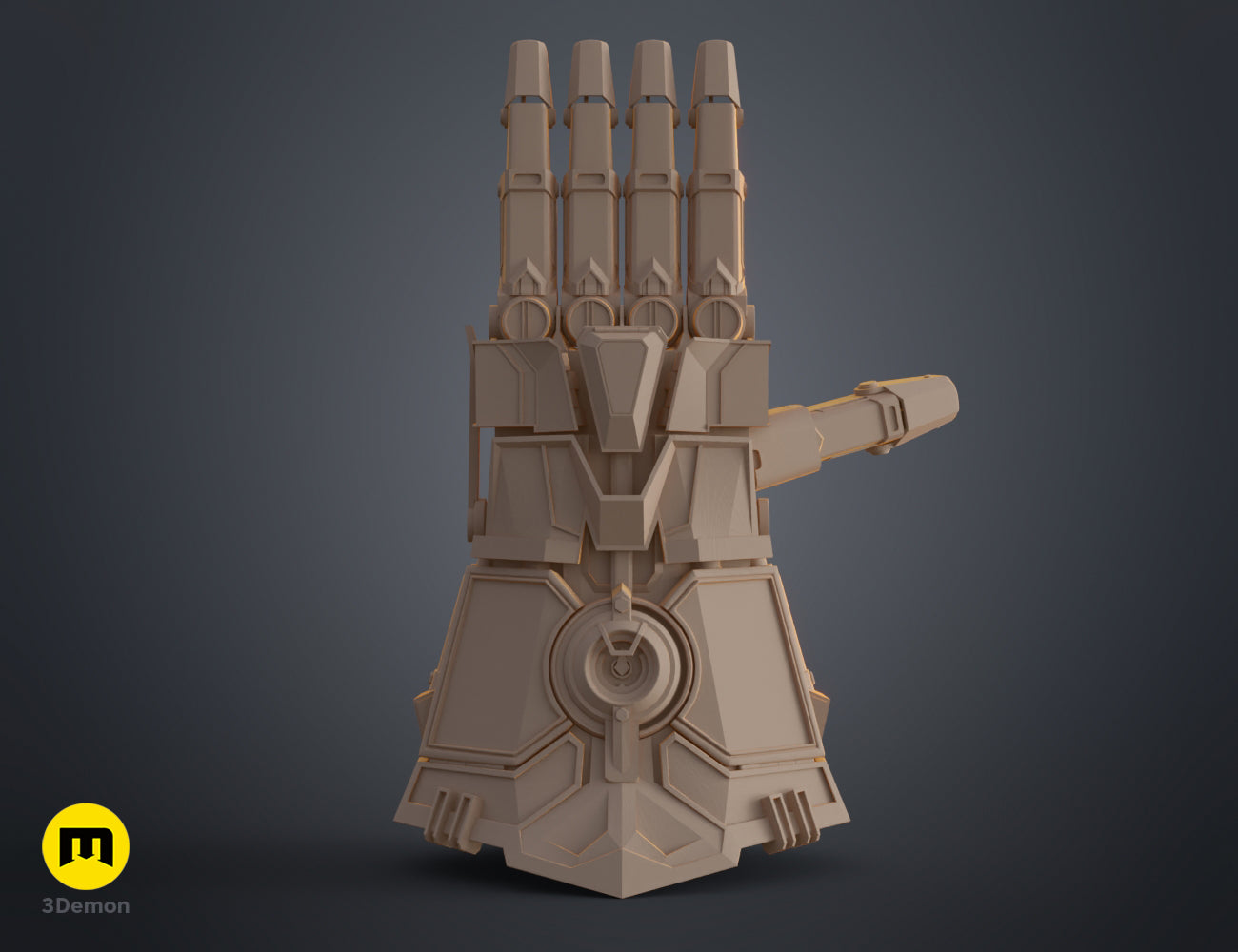

This is a digital 3D printable model of Vi’s Atlas Gauntlet / Glove from League of Legends: Arcane series.

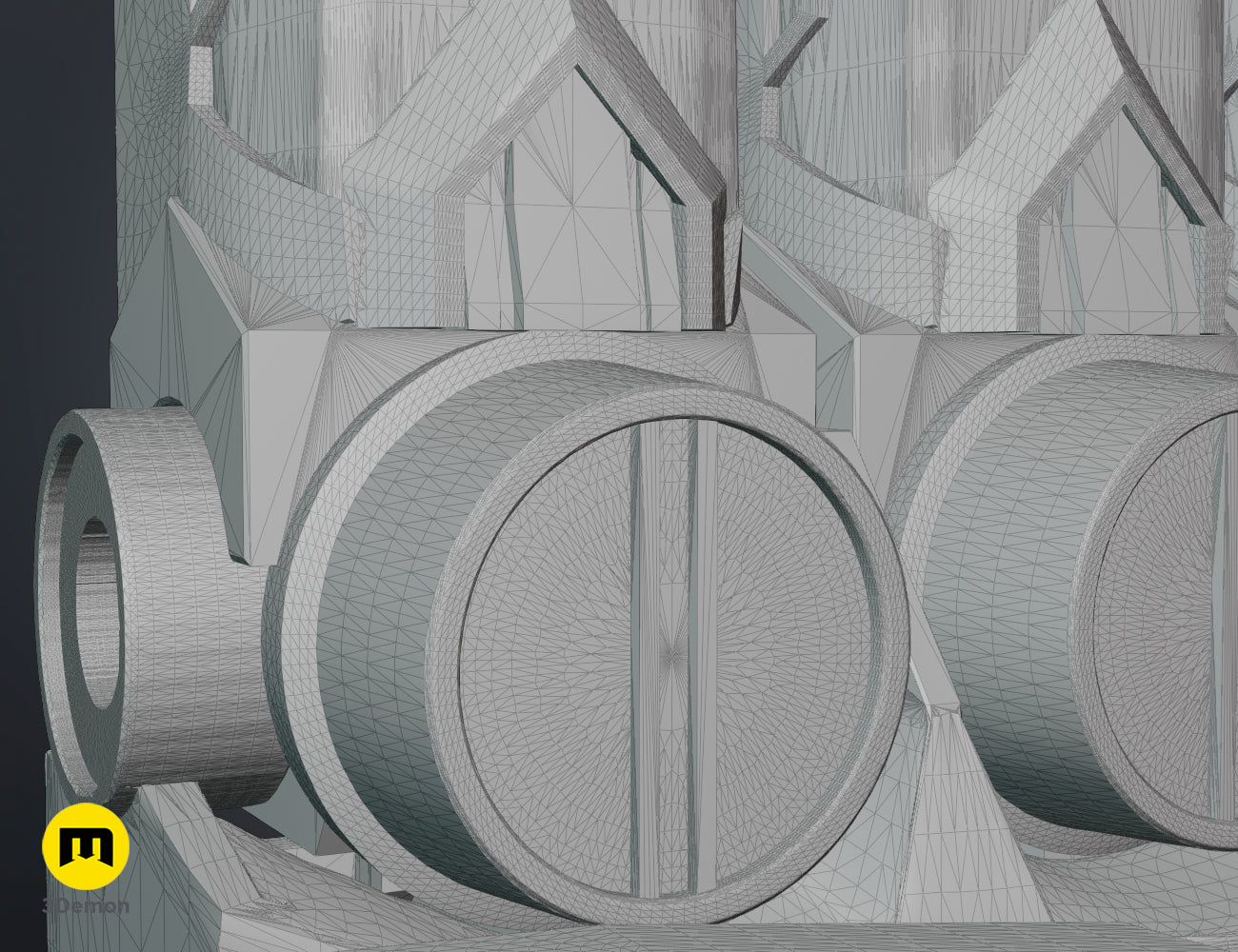

• functional hinges

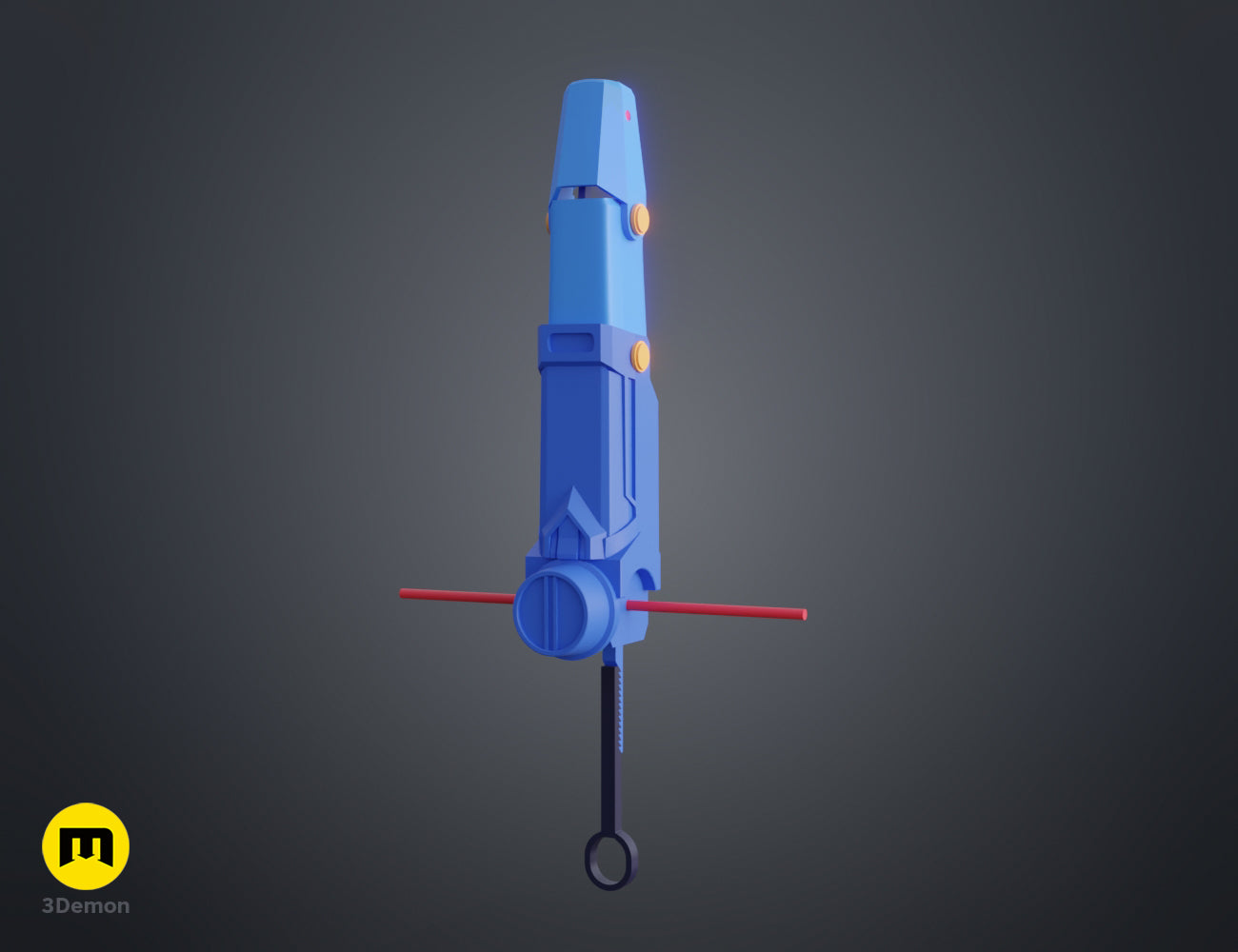

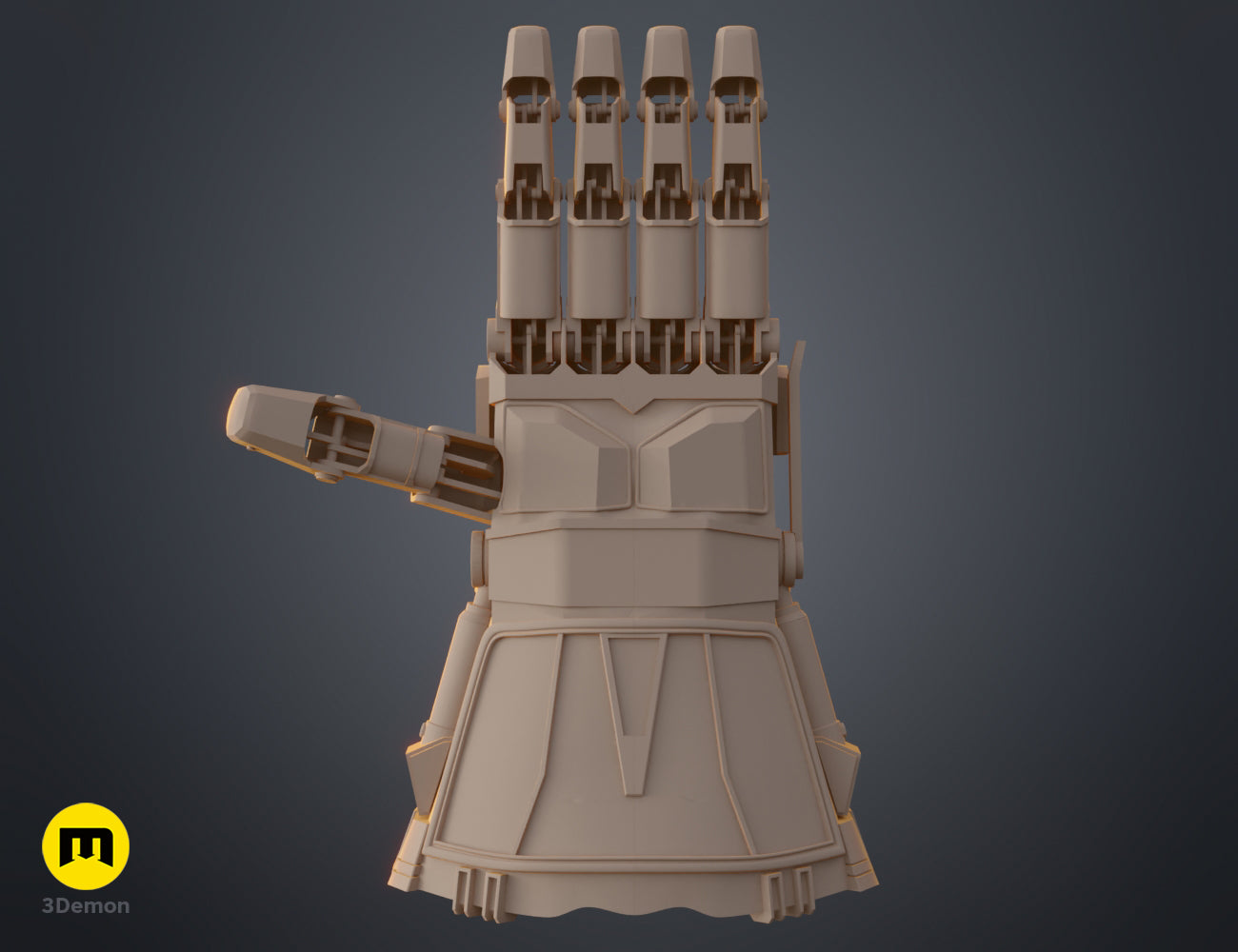

• mechanical movable fingers
• parts can be printed in translucent resin or filament (for LED lights)
• FDM printer friendly (200mm printer beds)
• parts oriented for best printing
• perfect cosplay project
SIZE
Width: 412 mm
Length: 226 mm
Height: 589 mm
• Requires padding around the wrist. (Wrap in a piece of EVA foam.)

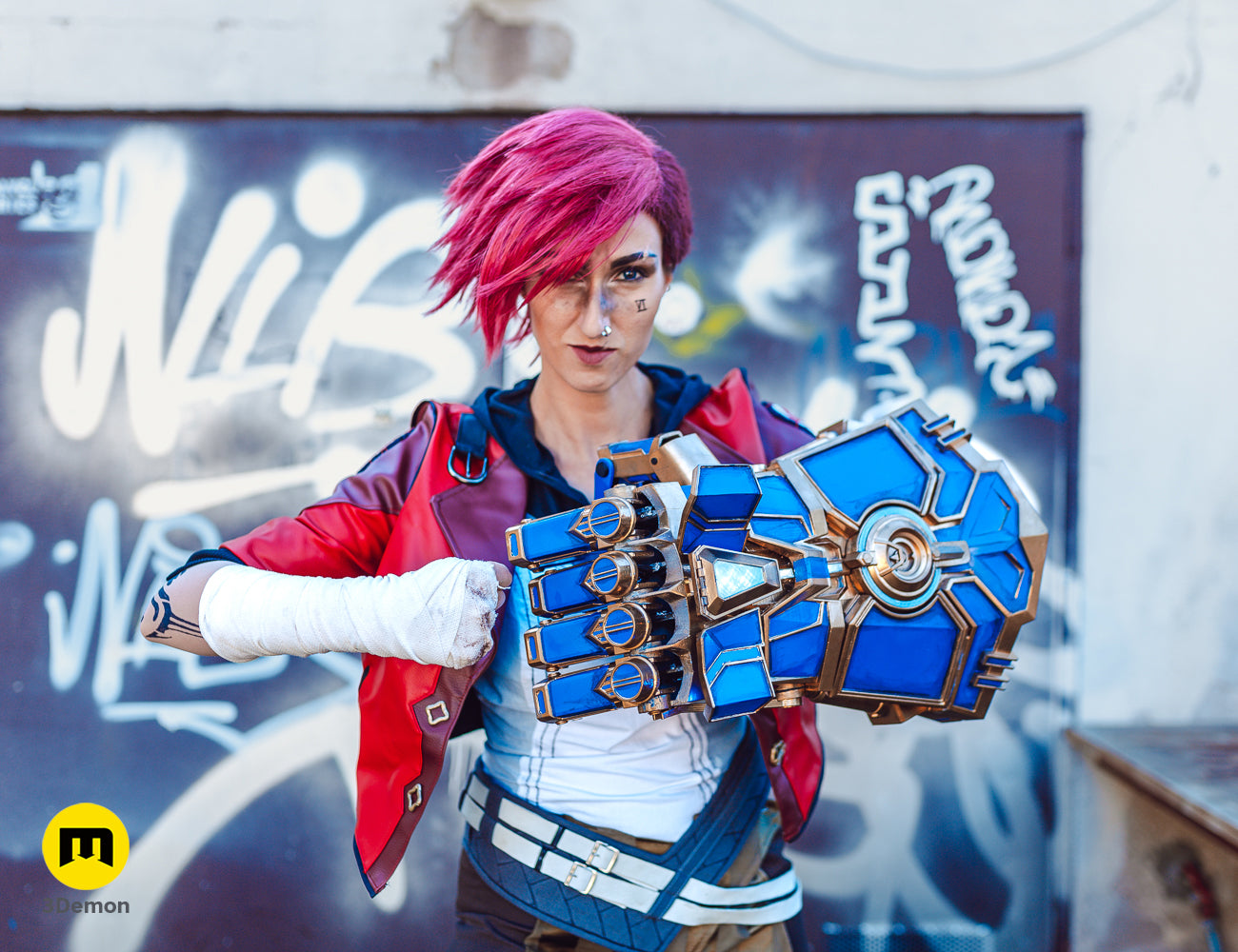

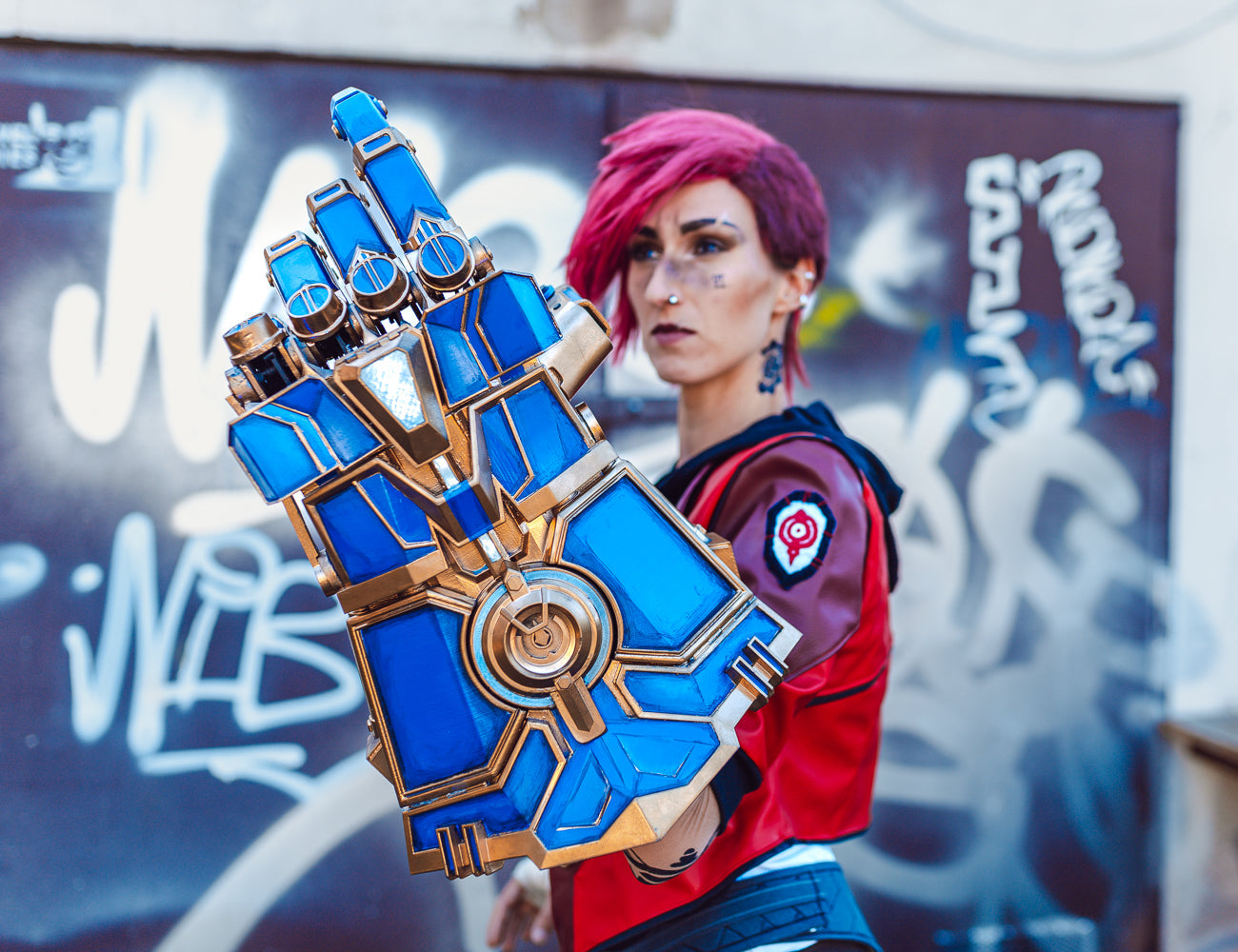

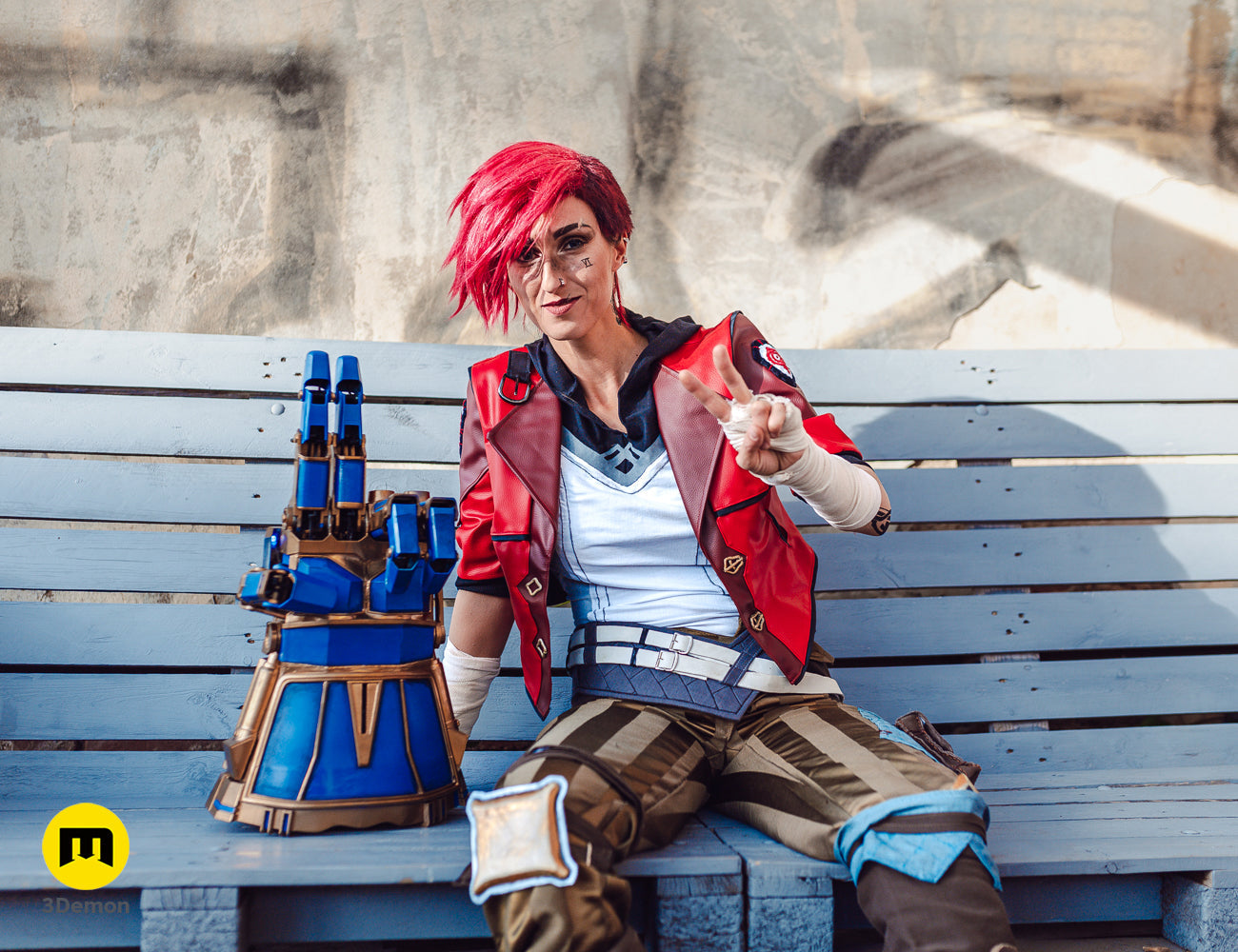

• Our friend @zuzana.von.drak cosplaying as Vi is 173cm tall
ASSEMBLY

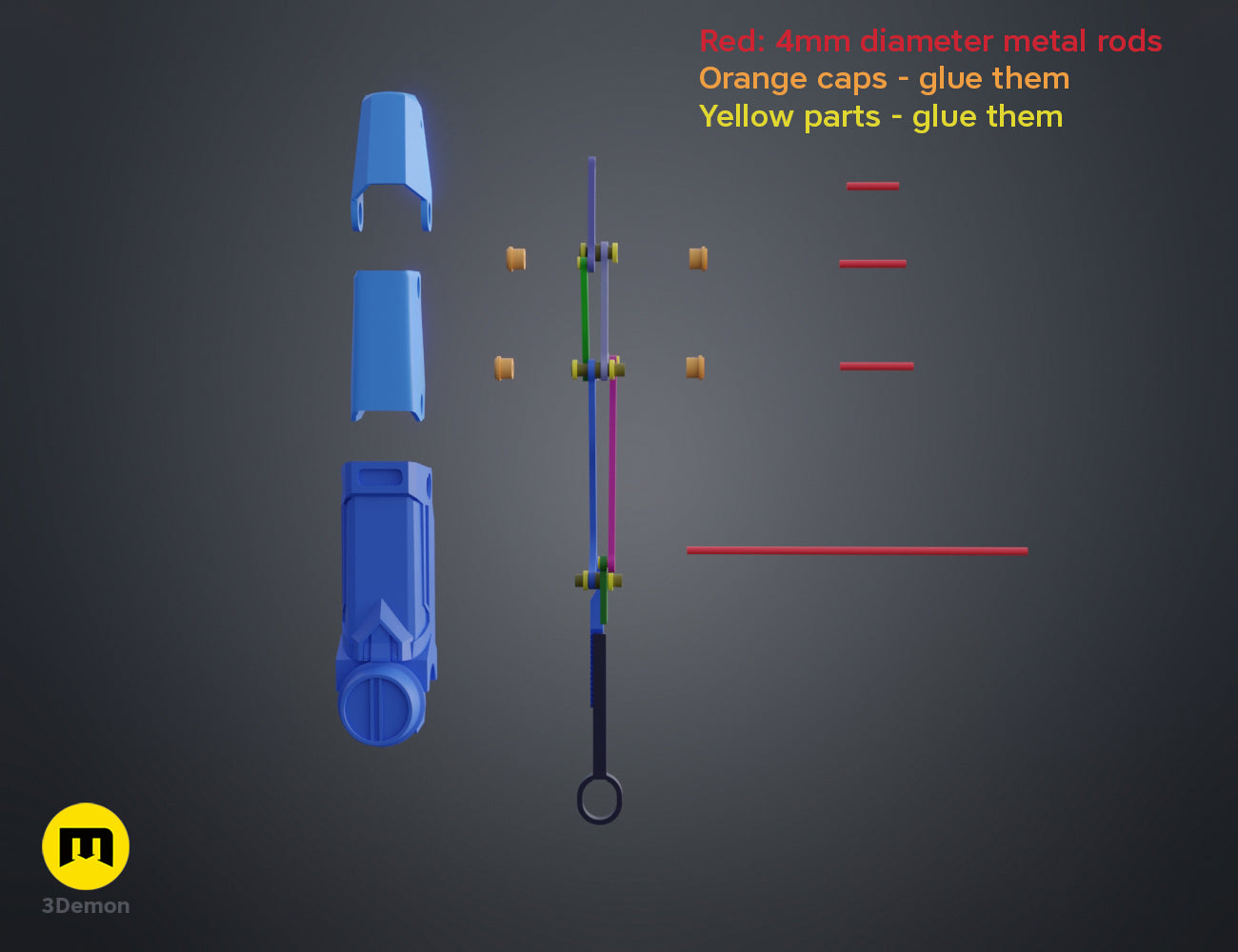

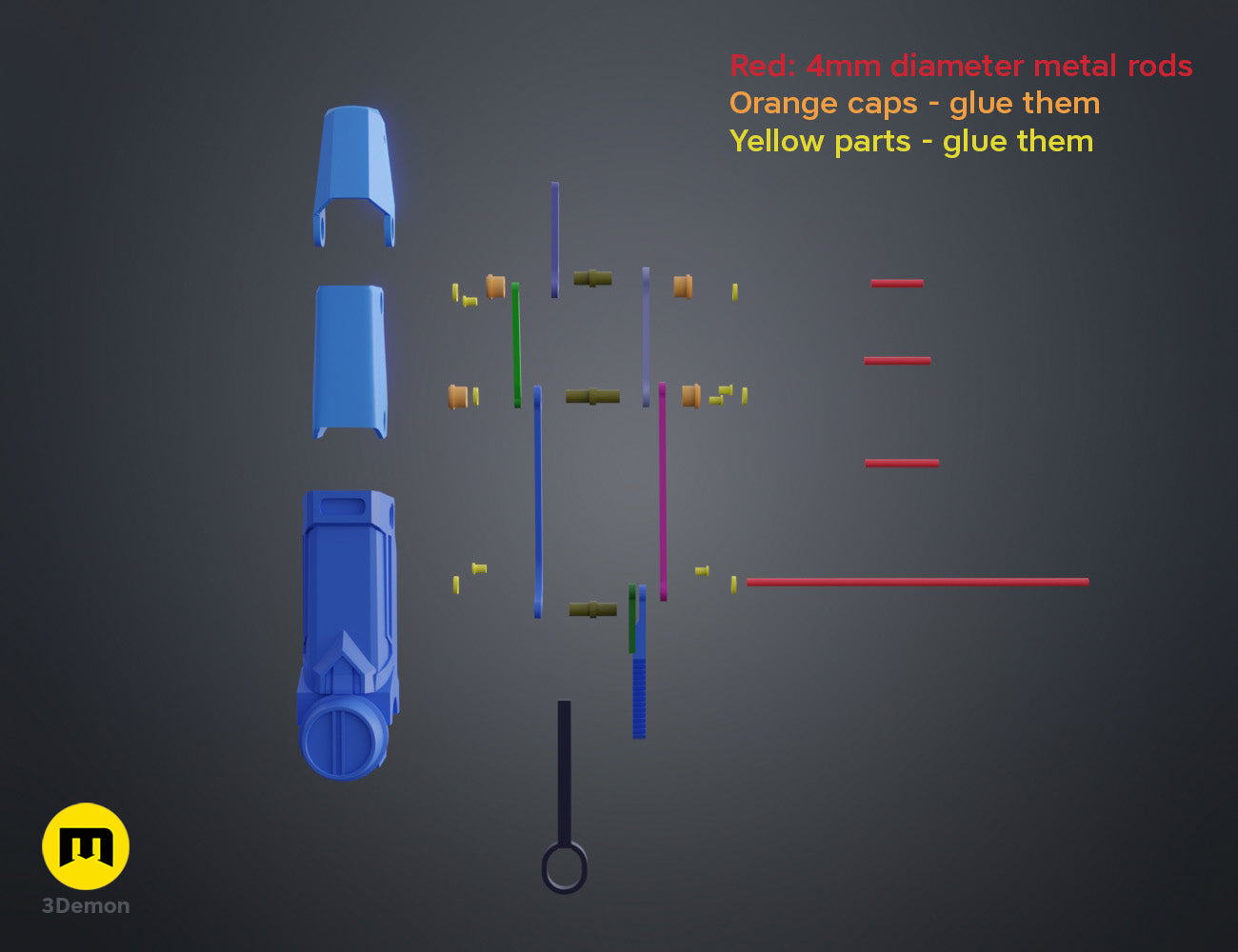

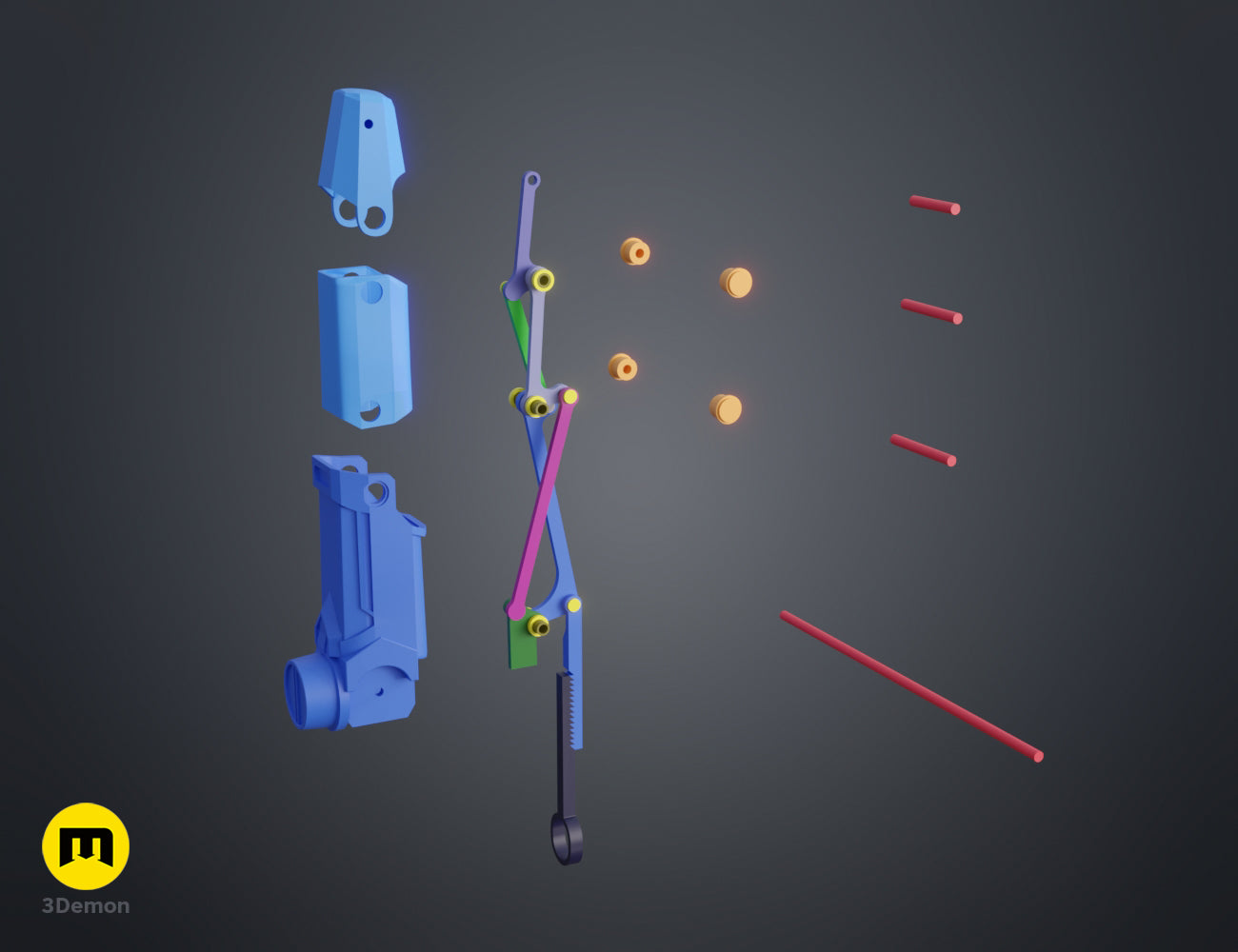

– you’ll need 4mm diameter metal rods for the finger mechanism axles.
(26, 34, 37, and 177 mm length – cut them with a hacksaw)

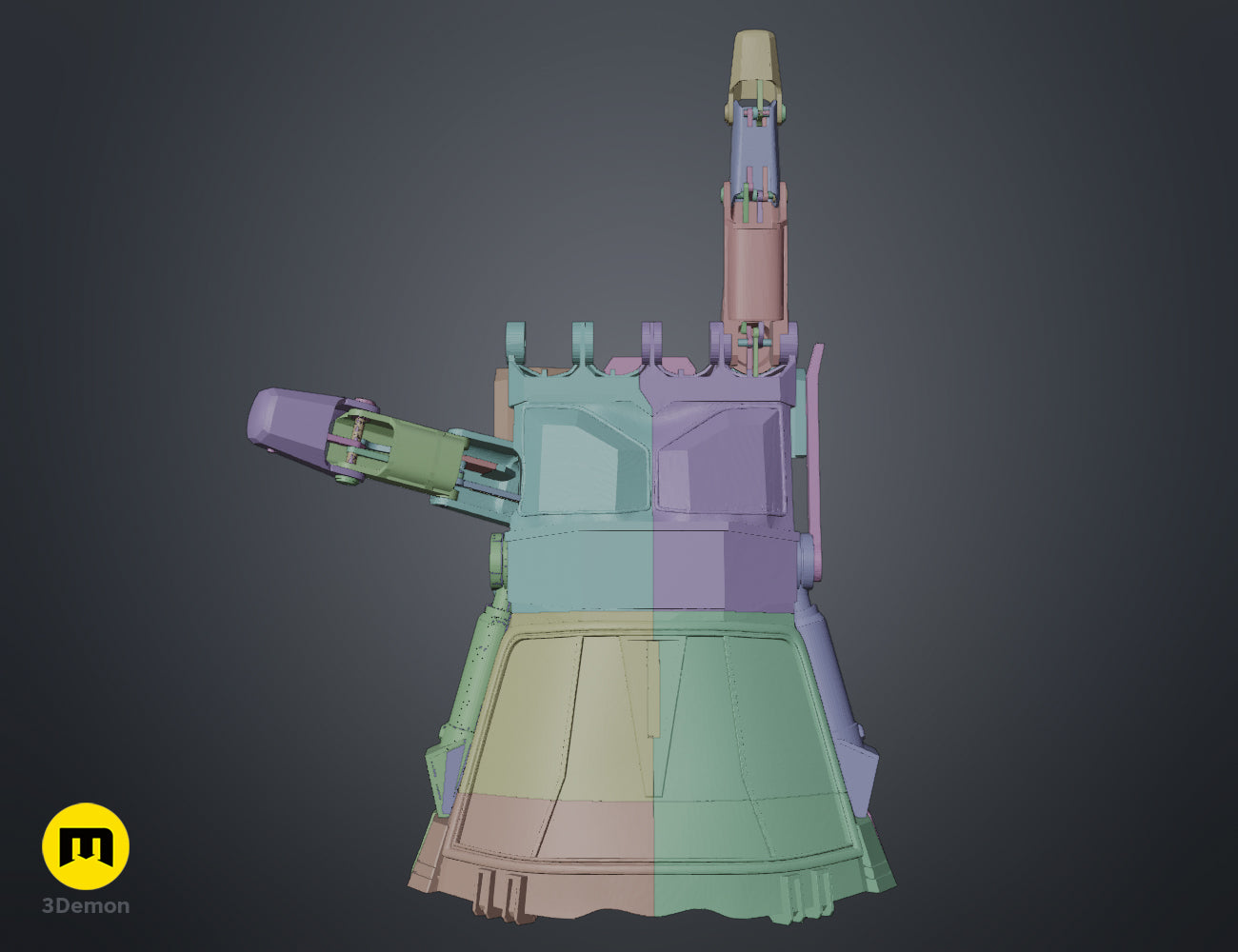

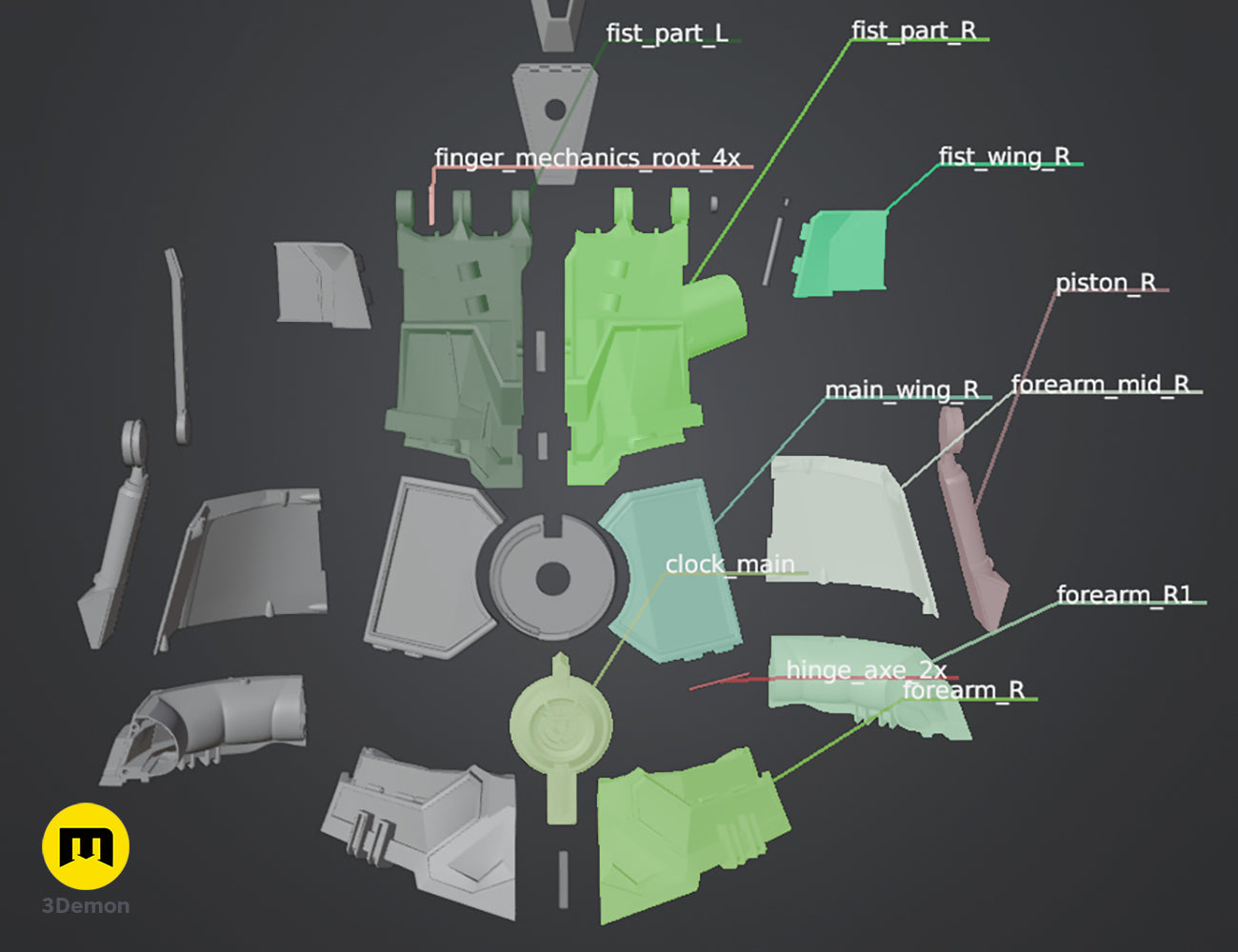

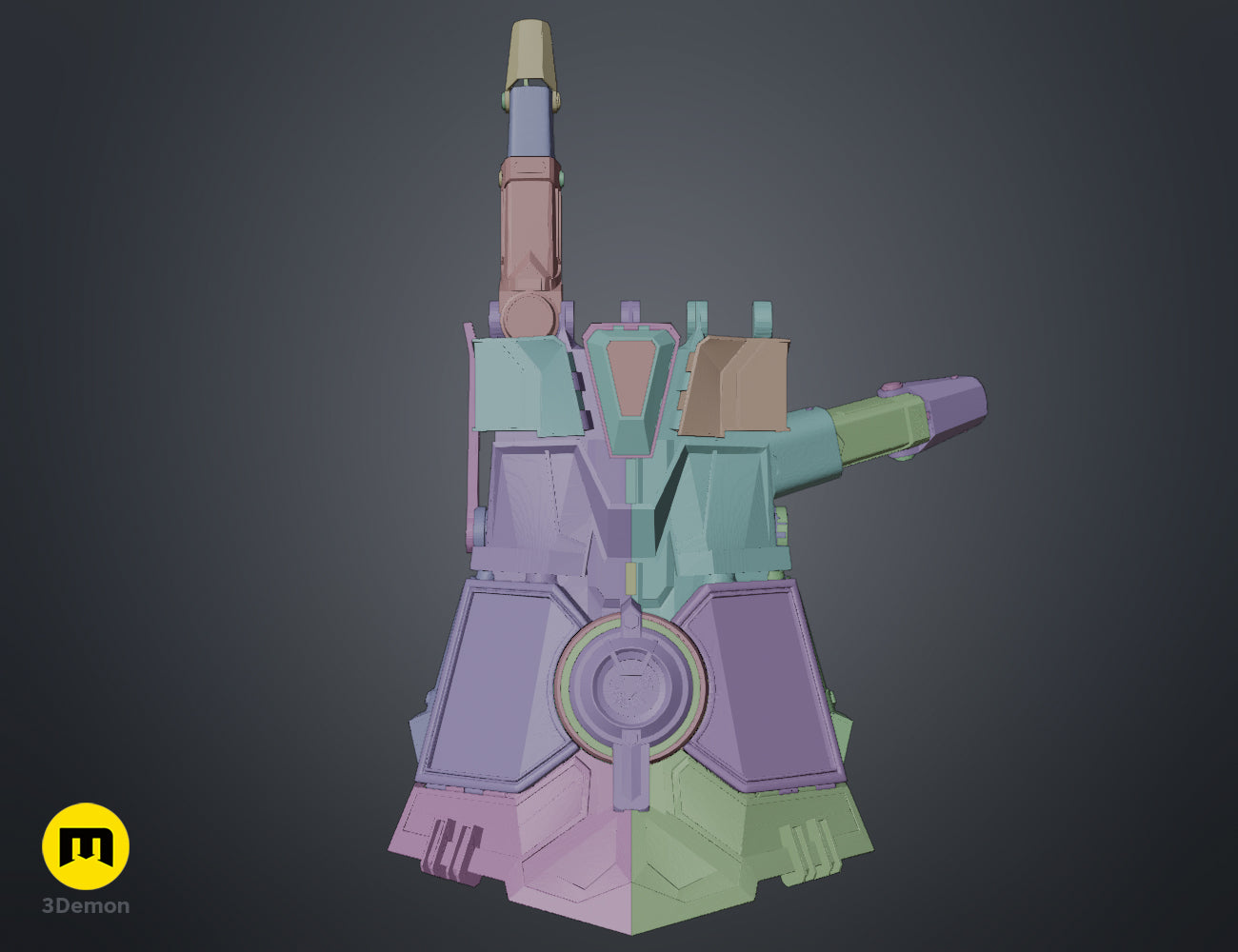

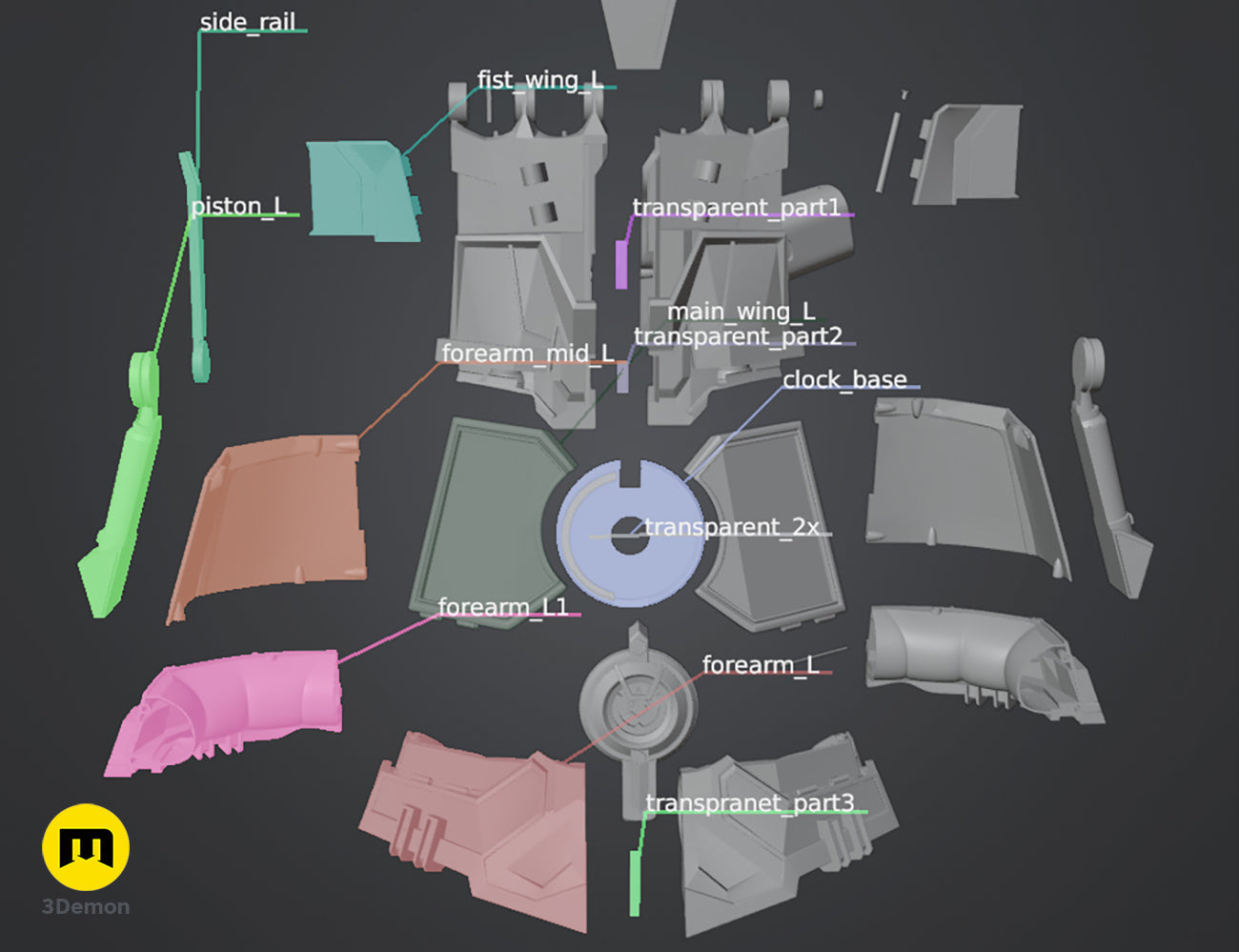

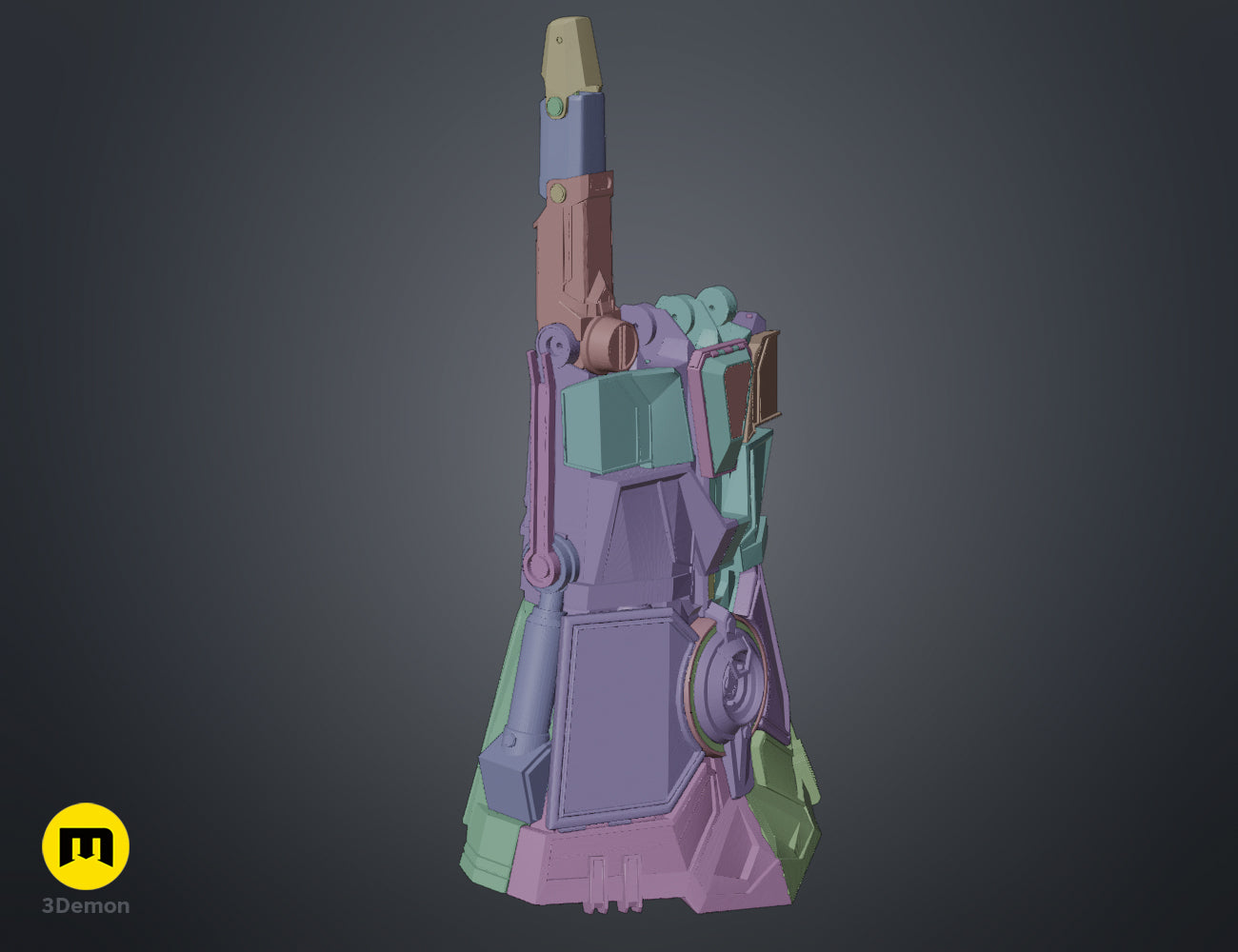

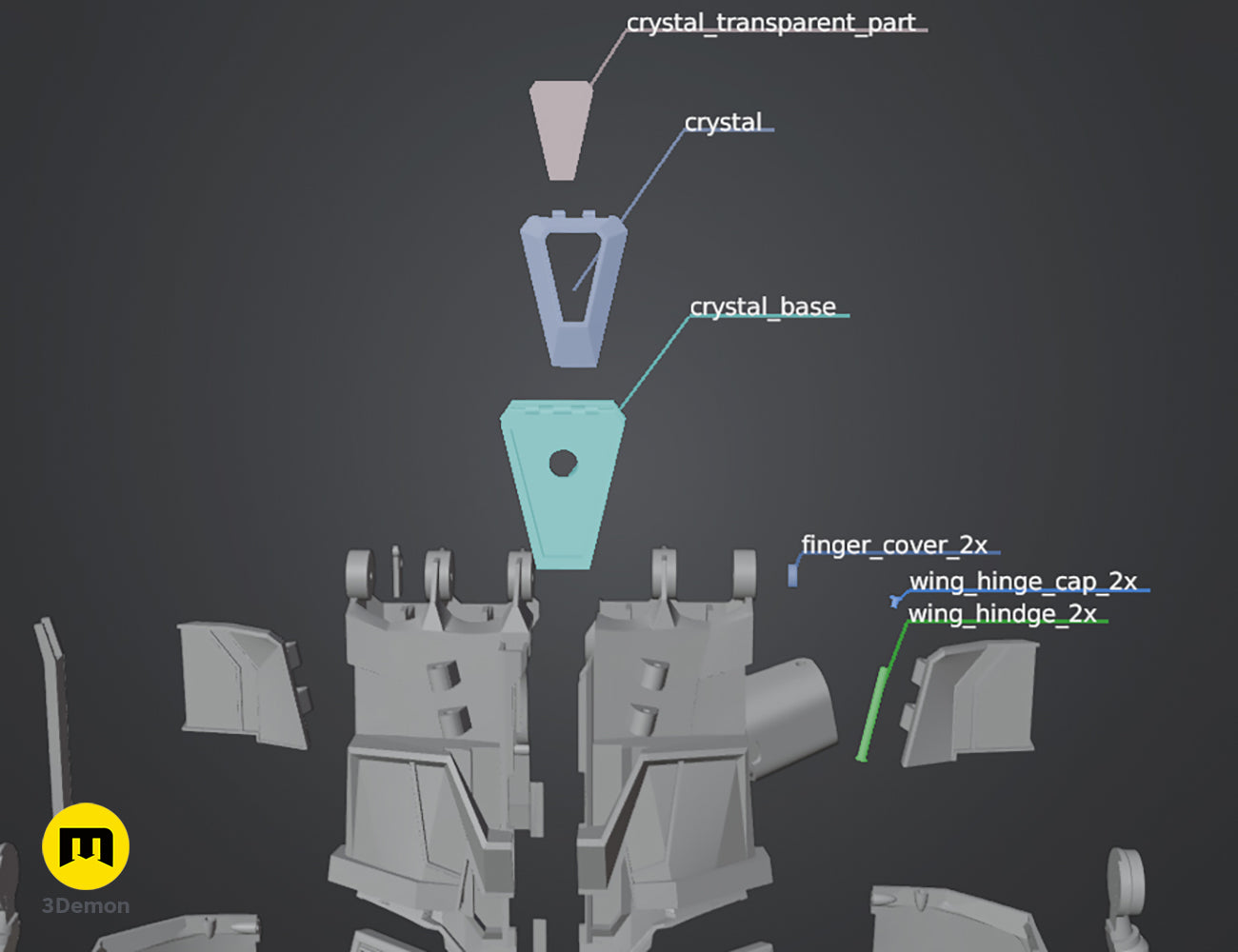

– Use the assembly images in the product gallery or the OBJ file. 🙂
– Open the OBJ file in Blender, 3D builder, or any similar 3D viewing program, click ”separate” and you’ll see the separated pieces and where exactly they belongs.
• total weight of our build: 2.1 kg
• completion time (printing, assembly, painting): one month
3D PRINTING SETTINGS
– Layer height 0.15 mm
– Infill 10%
– Supports 45°
For parts that are tall but have a small base, we use a 10 mm brim for better bed adhesion.
Printing settings will vary greatly depending on your specific printer.
We try to make the models in a way that uses as little support material as possible.
This model is meant to be post-processed after printing. This can be gluing, sanding, painting, etc. We use hex-pegs (included in the files) that will help you connect the cut pieces of the model. The mechanical glove is an advanced build and took us about one month to print and complete.
This fan-made model was brought to life by 3Demon. We are a group of modeling and 3d printing enthusiasts based in Prague, Czech Republic. We’ve been making 3D printable models for more than a decade. We make a lot of cosplay accessories but we also make all sorts of interesting 3D models. You can join our community or just look at more of our creations here
