Description

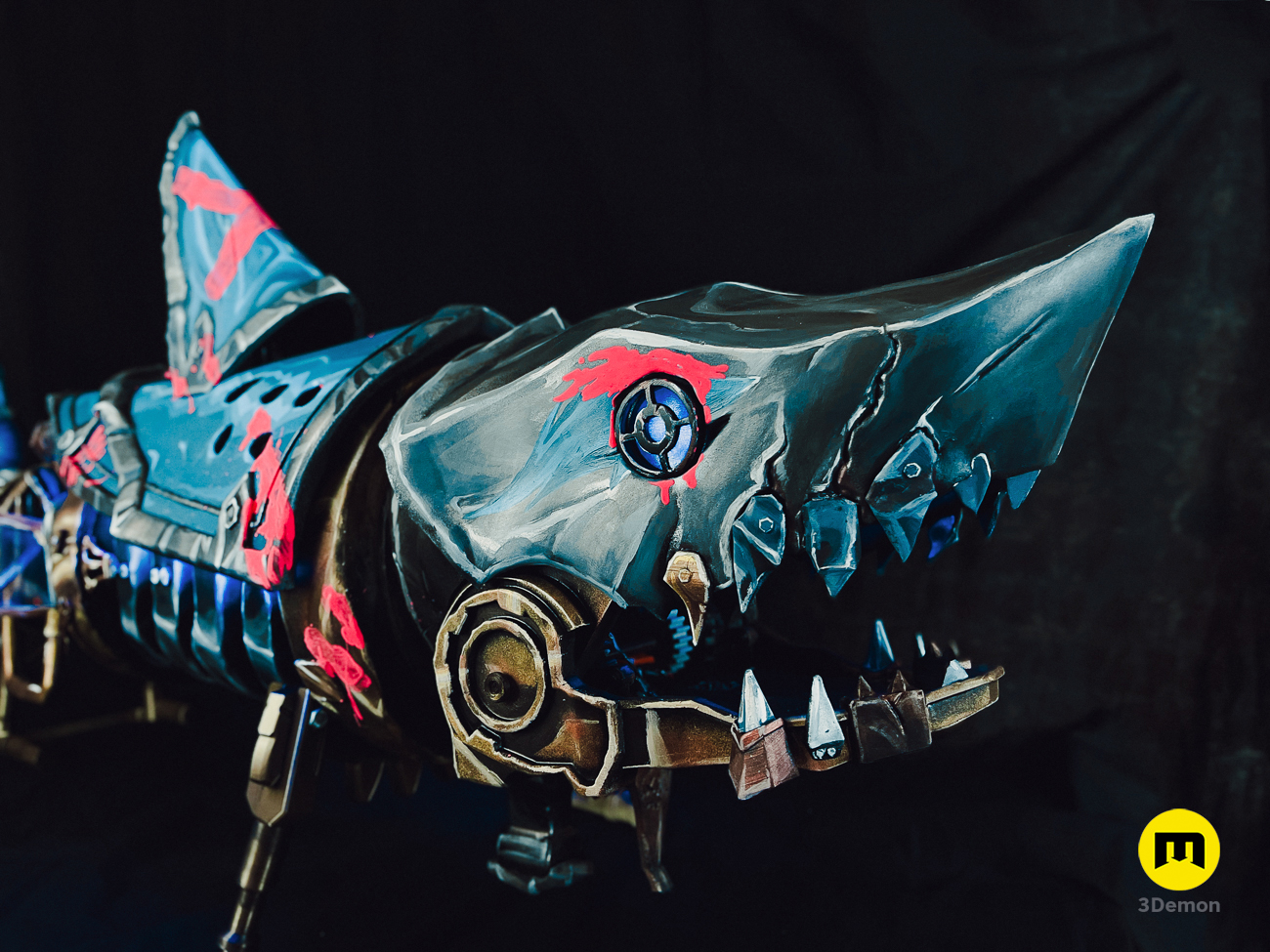

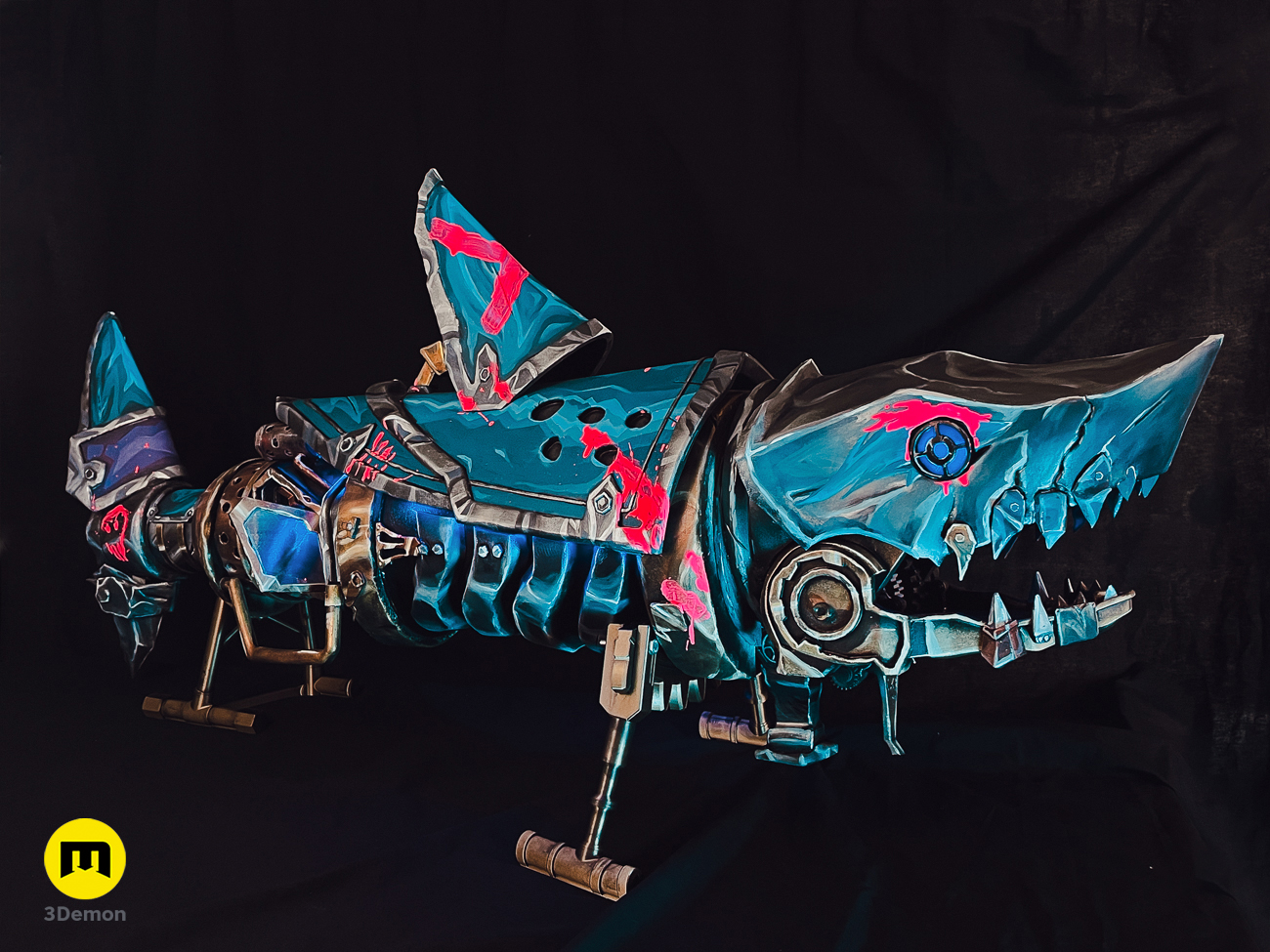

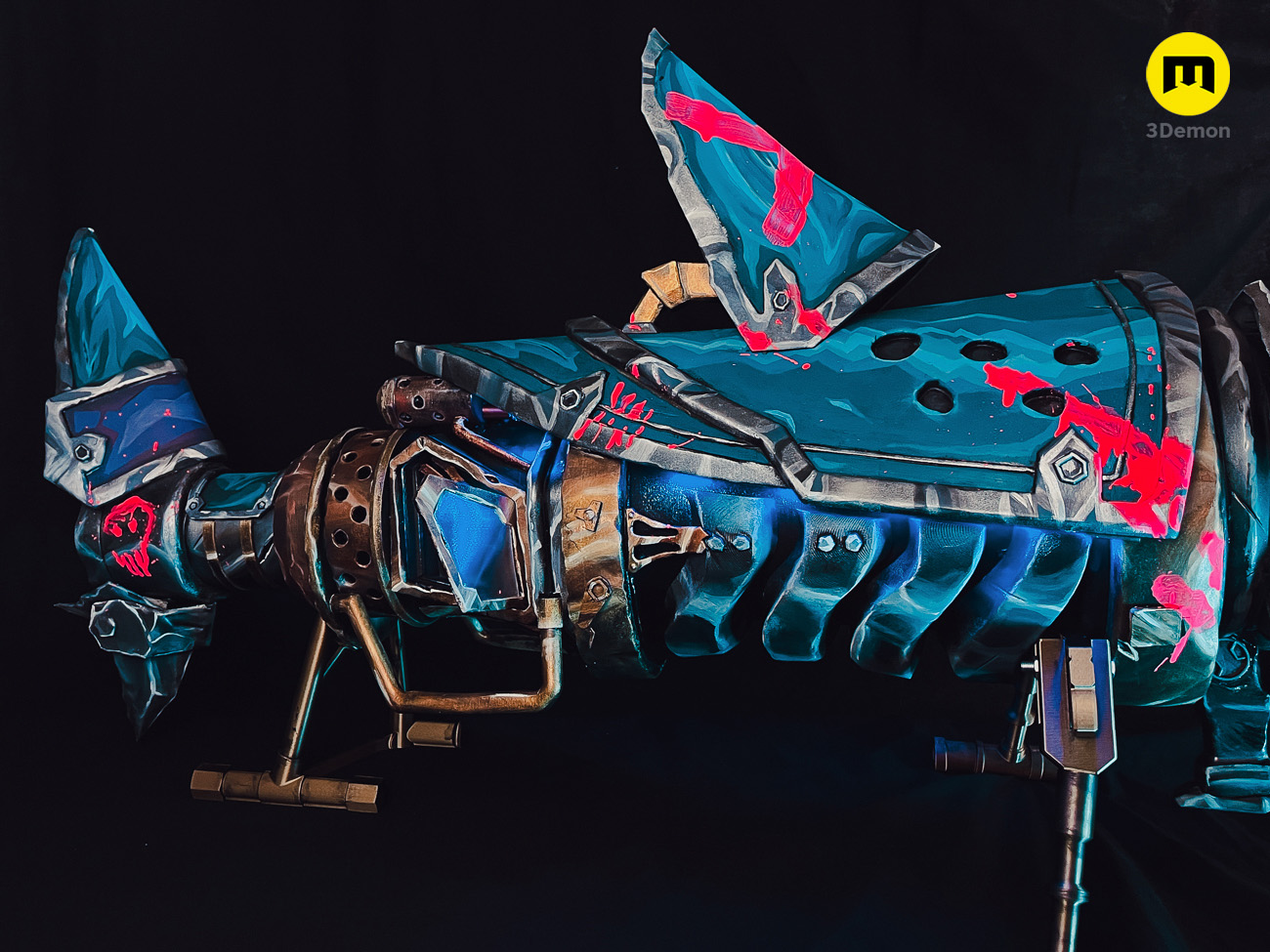

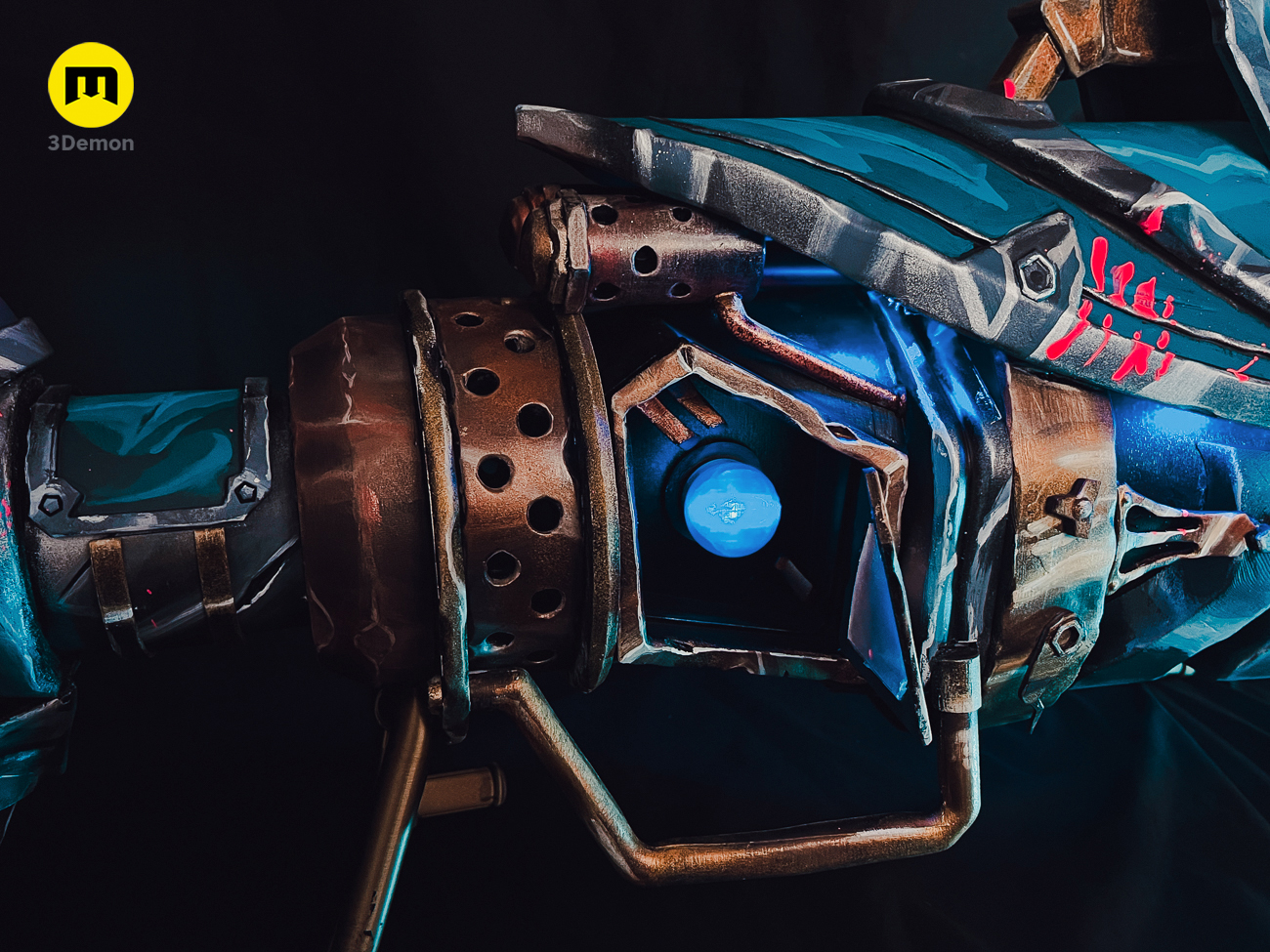

A digital 3D printable model of Jinx’s rocket launcher, Fishbones, with an opening jaw from Netflix’s Arcane: League of Legends.
The download includes both cut parts for a 250mm print bed, and the full, uncut model. All parts are arranged for optimal printing.
- Our Fishbones is sculpted with the highest attention to detail, creating a perfect Arcane replica
- Features an openable jaw
SIZE
At 100% scale the model’s dimensions are approximately:
Width 292 mm
Length 1310 mm
Height 582 mm
You can scale the model as you wish but we can’t guarantee that at a much smaller size, the model will print well.
3D PRINTING SETTINGS
We use these settings for most of our prints:
Layer height 0.2 mm
Infill 15%
Supports 45°
For parts that are tall but have a small base, we use a 10 mm brim for better bed adhesion.
ASSEMBLY
You will need:
- Two M6 screws
- 9 M3 screws (35mm or longer)
- Super glue
Start by assembling the main body. Begin with the “Front ring” as it is flat and stable. Then, assemble the components on top of each other (like a stack) until you reach the “Brass ring-2” part.
Some parts are made up of multiple pieces, which are divided into top/bottom or left/right sections. Before gluing, make sure all parts fit together smoothly.
- The “Top grip” can be inserted into the assembled top cover.
- The “Rear handles” can easily be inserted from below into the “Black rubber part.”
- The “Rear handles” can also be easily inserted into “Brass ring-2” (the one with large holes on the sides). The brass ring will be placed on top of them.
- The assembled “Neck” can be inserted into the assembled “Front ring.”
